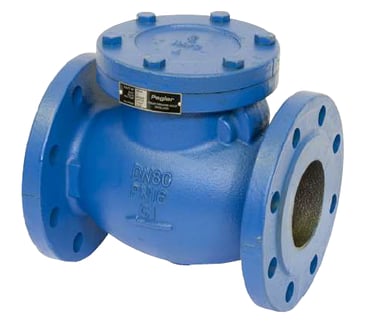

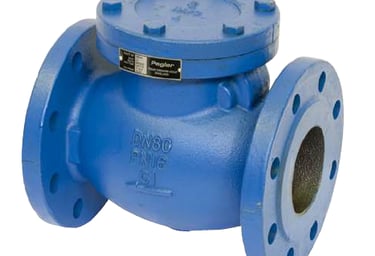

Pegler V914 Cast Iron Swing Check Valve

The Pegler type V914 Valves are Cast Iron swing check valves which are intended prevent back flow in sections of pipe work and equipment an provide a long trouble-free service, it is intended to be used in the horizontal position however I can be used in a vertical pipeline. They are used for high velocity liquid services to prevent a change to the direction of flow caused by back flow and are available in sizes DN65 to DN300.

• according to EN16767:2020

• operating Pressure 16 Bar; -10°C to 120°C

• operating Pressure 11.8 Bar 121°C to 230°C

• Flanged to EN1092-2

Download Pegler V912 Y Strainer datasheet
